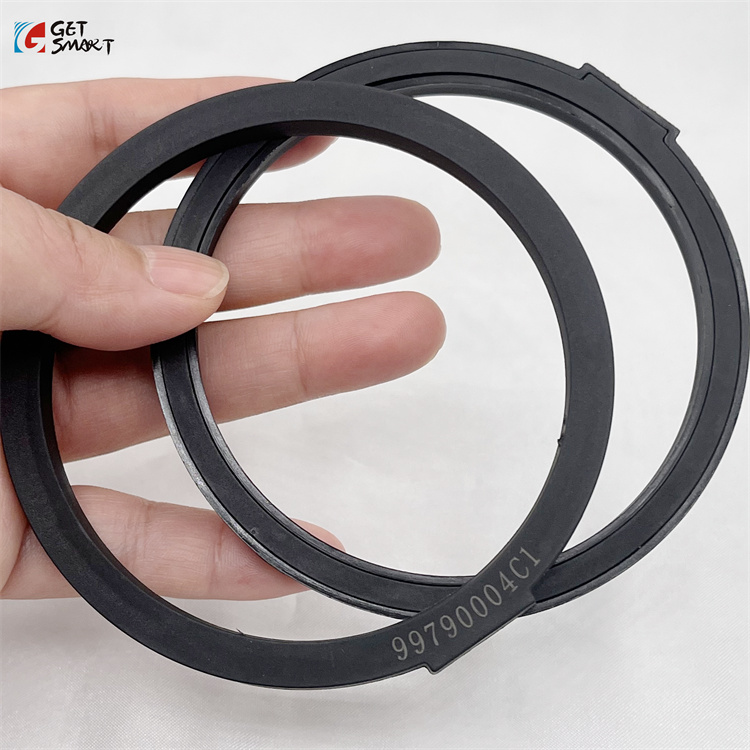

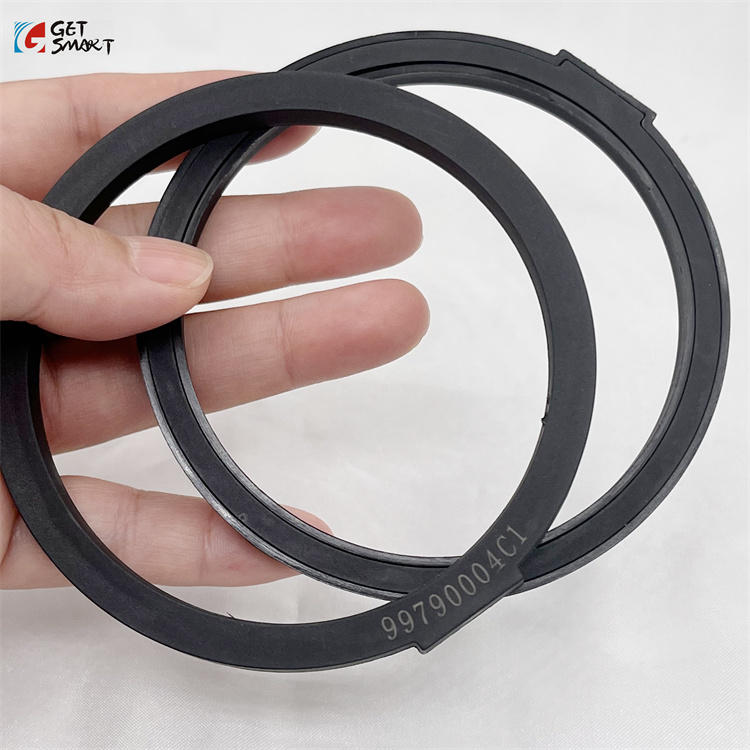

High-Durability RFID Ring for Car Oil Cap - Anti-Tampering & Identification Solution
Product description
This product is a 125kHz low-frequency, or 13.56MHZ, or 860-960mhz RFID electronic chip specifically developed for gas station scenarios, serving as a core component of RFID-based vehicle refueling recognition systems. Featuring a ring-shaped inductive design, it is compatible with various types of fuel guns and integrates advanced radio frequency identification (RFID) technology with multi-dimensional data collection capabilities. It breaks down information silos in traditional gas station management, enabling full-process digital monitoring of fueling operations, vapor recovery, tax supervision, metrological technical supervision, and consumer service management. This helps gas stations accelerate their informatization process and address management challenges posed by wide distribution and large quantities of facilities.
How an RFID Ring for Oil Caps Works
An RFID (Radio Frequency Identification) Ring for oil caps is a specialized, ring-shaped device integrated with RFID technology. Its core function is to enable automatic identification, data tracking, and anti-theft/anti-tampering protection for automotive oil caps and related fuel system components. Below is a detailed breakdown of its working principle, organized into key components and operational stages:
1. Core Components of the RFID Ring
Before understanding the working process, it is essential to recognize the three main parts that enable its functionality:
RFID Tag (Integrated in the Ring): The "information carrier" of the system, embedded within the ring’s durable material (e.g., high-temperature-resistant plastic or rubber, suitable for the engine bay environment). It consists of two sub-parts:
Microchip: Stores unique digital data, such as the oil cap’s serial number, vehicle VIN (Vehicle Identification Number), manufacturing date, or maintenance records. This data is non-volatile (retains information without power).
Antenna: A tiny, flexible antenna (often printed or etched) that receives radio frequency signals from the reader and transmits the tag’s stored data back.
RFID Reader (Installed in the Vehicle): The "signal transceiver" and "data interpreter," typically mounted near the oil cap’s position (e.g., on the fuel filler neck or engine compartment frame). It connects to the vehicle’s ECU (Engine Control Unit) or a dedicated monitoring system via wires or wirelessly (e.g., CAN bus).
Backend System (Vehicle ECU/Cloud Platform): The "data processor," which receives and analyzes data from the RFID reader. It may be the vehicle’s on-board computer (for real-time anti-theft alerts) or a cloud-based management system (for fleet maintenance tracking, e.g., in commercial trucks).
2. Step-by-Step Working Process
The RFID ring operates through wireless radio frequency communication between the tag and the reader, with no physical contact required. The process unfolds in four key stages:
Stage 1: Activating the RFID Tag (No Built-In Power Needed)
Unlike active RFID tags (which have batteries), most oil cap RFID rings use passive RFID tags—they require no internal power source. Instead:
When the vehicle is started (or when the system is triggered manually), the RFID reader emits a low-power radio frequency signal (typically in the UHF band, 860–960 MHz, for longer read ranges, or HF band, 13.56 MHz, for short-range precision) through its antenna.
The ring’s embedded tag antenna captures this radio frequency energy and converts it into a small electrical current. This current powers the tag’s microchip, "waking it up" from a dormant state.
Stage 2: Transmitting Data from Tag to Reader
Once activated, the tag’s microchip retrieves the unique stored data (e.g., the oil cap’s serial number matching the vehicle’s VIN).
The microchip modulates (encodes) this data into a radio frequency signal, which is then transmitted back to the reader via the tag’s antenna.
This transmission is fast (millisecond-level), ensuring real-time responsiveness—critical for on-board safety systems.
Stage 3: Reader Decodes and Sends Data to the Backend
The RFID reader receives the modulated signal from the tag and demodulates (decodes) it into readable digital data (e.g., "Serial Number: OC-2024-001; VIN: 1HGCM82633A123456").
The reader then sends this decoded data to the vehicle’s backend system (e.g., ECU) via a wired connection (e.g., CAN bus) or wirelessly.
For fleet management scenarios, the reader may also transmit data to a cloud platform via the vehicle’s telematics system (e.g., 4G/5G), enabling remote monitoring.
Stage 4: Backend System Verifies and Triggers Actions
The backend system (ECU or cloud) performs a pre-set verification process using the received data, then executes corresponding actions based on the result:
Legitimacy Verification: If the tag’s data matches the vehicle’s pre-stored information (e.g., the oil cap’s serial number is linked to the vehicle’s VIN), the system confirms the oil cap is "authentic and properly installed"—no alerts are triggered, and the vehicle operates normally.
Anti-Tampering/Anti-Theft Alerts: If the system detects anomalies (e.g., no tag signal is received when the vehicle is running, or the tag’s serial number does not match the VIN), it identifies potential issues (e.g., the oil cap was stolen, replaced with a counterfeit, or tampered with). The ECU may then:
Activate a dashboard warning light (e.g., "Oil Cap Tampered") or audible alert.
Restrict certain vehicle functions (e.g., limiting engine power) to deter theft.
Log the event in the vehicle’s diagnostic system for mechanics to review during maintenance.
Data Tracking (for Fleet/Maintenance): In commercial applications, the cloud platform uses the tag’s data to track oil cap replacement cycles, monitor if unauthorized caps are installed, or ensure compliance with maintenance schedules (e.g., "Oil cap replaced on Vehicle X on 2024-05-10").
3. Key Advantages of This Working Principle
Passive Design for Durability: No battery in the tag means the RFID ring has a long lifespan (5–10 years) and resists damage from high temperatures, oil, or vibration in the engine bay.
Non-Contact & Fast Operation: The reader can communicate with the tag even if the ring is slightly obscured (e.g., by dust or minor debris), and identification takes milliseconds—ideal for real-time vehicle systems.
Secure Data Transmission: The tag’s data is encrypted (in most industrial-grade designs), preventing counterfeiting or data tampering. Unauthorized tags cannot be easily programmed to match the vehicle’s system.
In summary, the RFID ring for oil caps leverages passive RFID technology to create a seamless "identify-verify-act" loop, enhancing vehicle security, simplifying maintenance tracking, and ensuring the integrity of critical fuel system components.
