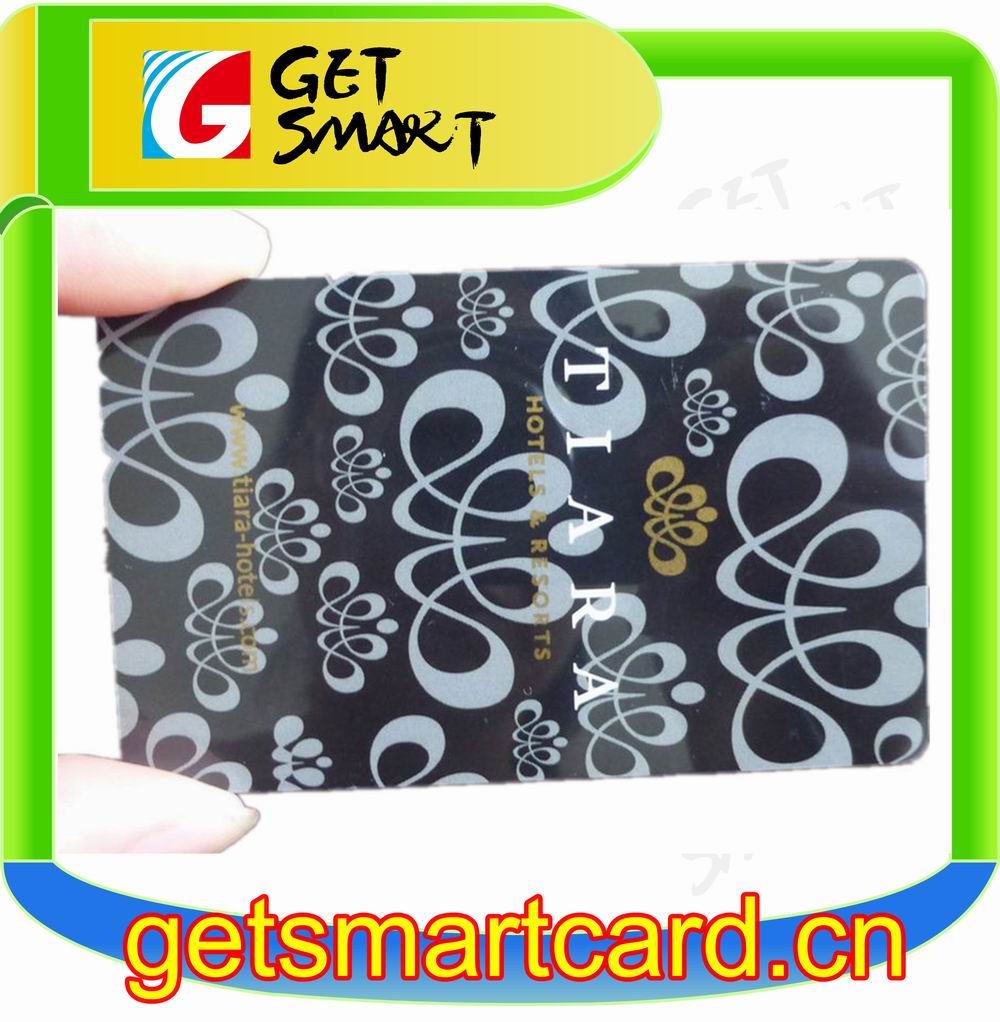

ISO Card IC with MIFARE Ultralight® C Technology
SKU: GSC-C
ISO Card IC with MIFARE Ultralight® C Technology
Product description
ISO Card IC with MIFARE Ultralight® C Technology
NXP IC solution for contactless limited-use
applications with enhanced security
applications with enhanced security
It is best for Contactless smart paper ticketing
MIFARE Ultralight C is the first smart card IC for limited-use applications that offers solution
developers and providers the benefits of an open cryptography. With 3DES, MIFARE Ultralight C
uses a widely adopted standard, enabling easy integration in existing infrastructures.
The integrated authentication command set provides an effective cloning protection that helps
to prevent counterfeit of tickets.
developers and providers the benefits of an open cryptography. With 3DES, MIFARE Ultralight C
uses a widely adopted standard, enabling easy integration in existing infrastructures.
The integrated authentication command set provides an effective cloning protection that helps
to prevent counterfeit of tickets.
Key applications
Public transportation
Event ticketing
Loyalty
NFC Forum tag type 2
Public transportation
Event ticketing
Loyalty
NFC Forum tag type 2

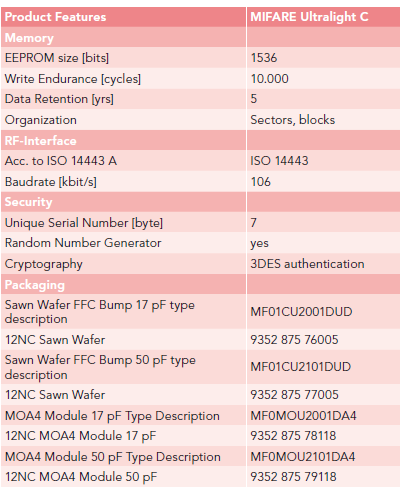

Key features
} Fully ISO / IEC 14443 A 1-3 compliant
} 106 kbit/s communication speed
} Anti-collision support
} 1536 bits (192 bytes) EEPROM memory
} Protected data access via 3DES authentication
} Cloning protection
} Command set compatible to MIFARE Ultralight TM
} Memory structure as in MIFARE Ultralight (pages)
} 16 bit counter
} Unique 7 bytes serial number
} Number of single write operations: 10.000
} Fully ISO / IEC 14443 A 1-3 compliant
} 106 kbit/s communication speed
} Anti-collision support
} 1536 bits (192 bytes) EEPROM memory
} Protected data access via 3DES authentication
} Cloning protection
} Command set compatible to MIFARE Ultralight TM
} Memory structure as in MIFARE Ultralight (pages)
} 16 bit counter
} Unique 7 bytes serial number
} Number of single write operations: 10.000
Benefits for solution providers
} Ability to detect cloned tickets
} Availability of statistical data to optimize the system
} Efficient fleet management
} Higher customer throughput
} Reduction of maintenance costs
} Reduction of cash handling
} Fraud prevention
} Easy system enhancement in limited-use applications
} Ability to detect cloned tickets
} Availability of statistical data to optimize the system
} Efficient fleet management
} Higher customer throughput
} Reduction of maintenance costs
} Reduction of cash handling
} Fraud prevention
} Easy system enhancement in limited-use applications
Specification
| Item | Specification |
| Product Name | ISO Card IC with MIFARE Ultralight® C Technology |
| SKU | GSC-C |
| Material | Hard PVC |
| Dimension | 86X54MM |
| Read range | 0~10CM |
| Frequency range | 13.56MHZ |
| IP Classification | IP68(IEC60529), waterproof |
| Hole | Optional |
| IC type | MIFARE Ultralight® C |
| Color | White |
| Plain white or customized Logo | |
| Working Temperature | -20 to +85°C |
| Production Time | 10~12days |
